Underfloor Heating Installation: A Complete Technical Guide for Contractors and Engineers

Marcus Chen thought he had accounted for everything. The hydronic underfloor heating system for his client's 400 m² commercial renovation was spec'd, the manifold was ordered, and the tubing was ready to unroll. Then his installer ran the first heat-loss calculation without factoring in subfloor insulation. The result? The system would need to run 23% longer to maintain target temperatures, and the client's energy bills would spike every winter.

This scenario plays out more often than most contractors admit. Underfloor heating installation isn't just about laying pipes or cables beneath the floor. It's about creating a complete thermal system where insulation, substrate preparation, and heating elements work together. Get one layer wrong, and you compromise efficiency, comfort, and system longevity.

In this guide, we'll walk through the complete underfloor heating installation process, from subfloor preparation and insulation board selection to tubing layout and final floor covering. You'll learn how to avoid the mistakes that cost projects thousands in rework, and how the right insulation materials can improve system efficiency by 30% or more.

Why Subfloor Insulation Is the Foundation of Every Underfloor Heating Installation

Underfloor heating systems work by radiating heat upward through the floor surface. Without proper subfloor insulation, a significant portion of that heat travels downward into the concrete slab or soil beneath the building. Industry data from the International Energy Agency shows that uninsulated floors can account for 10–20% of total building heat loss in temperate climates.

The Physics of Downward Heat Loss

Heat follows the path of least resistance. In an underfloor heating installation, that means thermal energy moves in every direction, not just upward toward the occupied space. A concrete subfloor has thermal conductivity around 1.7 W/(m·K), which is roughly 50 times higher than rigid XPS insulation board at 0.030–0.038 W/(m·K). Without an insulation barrier, your heating system is effectively warming the ground.

For hydronic systems circulating water at 45°C, this translates to real losses. A poorly insulated installation might lose 25–35 W/m² downward. With proper subfloor insulation, that figure drops to 8–12 W/m². Over a heating season, the difference is measurable in both energy cost and carbon emissions.

Choosing the Right Insulation Board for Underfloor Heating

Not all insulation materials suit underfloor heating applications. The board must withstand compressive loads from the screed or finished floor above, resist moisture from the substrate below, and maintain dimensional stability across temperature cycles.

XPS extruded polystyrene boards are the industry standard for subfloor insulation in underfloor heating systems. Their closed-cell structure delivers:

• Thermal conductivity: 0.030–0.038 W/(m·K) for excellent thermal resistance

• Compressive strength: 150–700 kPa depending on grade, sufficient for residential and commercial screed loads

• Water resistance: Closed-cell structure resists moisture absorption better than open-cell alternatives

• Dimensional stability: Maintains shape across the temperature range of underfloor heating cycles

At DaCheng BangMei, our XPS insulation boards are manufactured with compressive strengths starting at 250 kPa, making them suitable for standard screed applications up to 65 mm thickness. For heavy commercial loads or thicker screeds, our 500 kPa and 700 kPa grades provide additional structural support without compression.

Want to see which XPS grade suits your project? Explore our XPS insulation board specifications and compressive strength options.

Edge and Perimeter Insulation Requirements

Heat doesn't just escape downward. Thermal bridging at the perimeter of the heated zone allows heat to flow laterally into unheated areas and external walls. Building codes in most markets now require edge insulation strips installed where the heated screed meets vertical surfaces.

Rock wool edge insulation strips serve this function effectively. Our Yalong rock wool boards, with densities of 60–100 kg/m³, can be cut into perimeter strips that:

• Provide thermal break at slab edges

• Absorb expansion movement of the heated screed

• Deliver non-combustible fire performance (A1 rating) where code requires it

• Install quickly before screed pouring

For projects where building codes mandate non-combustible materials throughout, our A1-rated rock wool insulation boards offer a code-compliant edge insulation solution.

Electric vs. Hydronic Underfloor Heating: Installation Implications

The type of underfloor heating system you install determines much of the preparation, insulation strategy, and construction sequence. Both systems benefit from subfloor insulation, but the installation details differ significantly.

Electric Underfloor Heating Installation

Electric systems use heating cables or mats installed directly beneath the floor finish or embedded in a thin screed. They are typically used for smaller areas, retrofit applications, or supplemental heating.

Installation sequence:

1. Prepare and clean the structural subfloor

2. Install XPS insulation boards (minimum 20 mm, 30 mm recommended)

3. Lay a vapor barrier or separation membrane if required by local code

4. Install heating mats or cables according to manufacturer spacing guidelines

5. Embed in a thin self-leveling compound or tile adhesive (typically 3–10 mm)

6. Install floor finish directly over the heating element

Electric systems heat up faster than hydronic systems but have higher operating costs per kWh in most markets. The thin buildup height makes them ideal for retrofits where floor height cannot increase significantly.

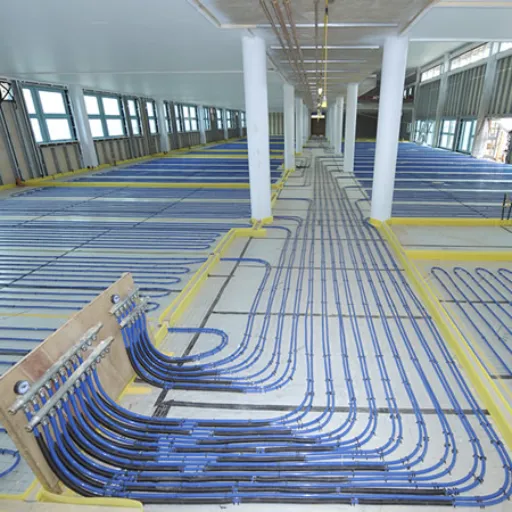

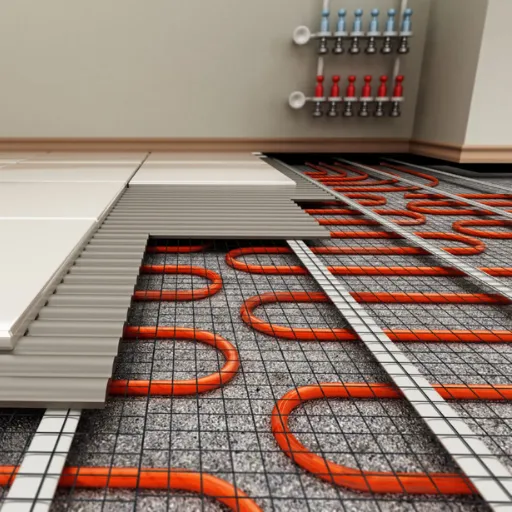

Hydronic Underfloor Heating Installation

Hydronic systems circulate warm water through plastic tubing (typically PE-RT or PEX-a) embedded in a screed layer. They are the preferred choice for whole-building heating and larger commercial applications.

Installation sequence:

1. Prepare structural subfloor with leveling compound if needed

2. Install XPS insulation boards (minimum 30 mm, 50–100 mm for ground floors)

3. Lay a vapor barrier membrane above the insulation

4. Install edge insulation strips around the perimeter

5. Lay the pipework in specified loops with fixing clips or rails

6. Pressure-test the pipework before screed installation

7. Pour screed (typically 65–75 mm over the pipes)

8. Allow screed curing time (typically 21 days for cement screed) before operating the system

Hydronic systems offer lower operating costs when connected to efficient heat sources like heat pumps or condensing boilers. The greater thermal mass of the screed provides more stable temperatures but slower response times.

Step-by-Step Underfloor Heating Installation Process

Whether you're installing electric or hydronic underfloor heating, following a methodical process prevents the errors that lead to cold spots, system inefficiency, or floor damage.

Step 1: Subfloor Assessment and Preparation

The structural subfloor must be clean, level, and structurally sound before any insulation goes down. Common preparation requirements include:

• Level tolerance: Maximum 3 mm deviation over 2 meters for direct-lay systems; 5 mm acceptable for screed systems

• Surface cleanliness: Remove all debris, dust, and loose material that could create voids under insulation boards

• Moisture testing: Concrete subfloors must reach acceptable moisture content before covering, typically <75% RH for polymer-modified screeds

• Structural integrity: Repair cracks or defects that could transmit through the finished floor

When Elena Rodriguez's installation team in Barcelona skipped the moisture test on a ground-floor slab, they trapped excess moisture beneath the XPS insulation. Six months later, efflorescence appeared at the tile joints, and the adhesive bond failed in several areas. The remediation cost exceeded €8,000, far more than the 30-minute moisture test would have cost.

Step 2: Laying the Insulation Board System

Insulation boards should cover the entire heated area with minimal gaps. Installation best practices include:

• Staggered joints: Lay boards in a brick-bond pattern so joints don't align continuously across the floor

• Tight butting: Push boards firmly together; gaps create thermal bridges

• Cutting around penetrations: Use a fine-tooth saw for clean cuts around pipes, columns, and conduits

• Multiple layers: For thick insulation requirements, stagger joints between layers to minimize thermal bridging

For ground-floor installations or installations over unheated basements, building codes typically require 50–100 mm of XPS insulation. Suspended floors and upper levels may require 20–30 mm depending on climate zone and energy code.

Step 3: Installing the Heating Elements

For electric systems:

• Roll out heating mats with the cable side down

• Maintain specified spacing between cable runs (typically 50–200 mm depending on heat output requirements)

• Never overlap cables or cross one cable over another

• Install a floor sensor in a conduit between two cable runs for thermostat control

• Test resistance with a multimeter before, during, and after installation

For hydronic systems:

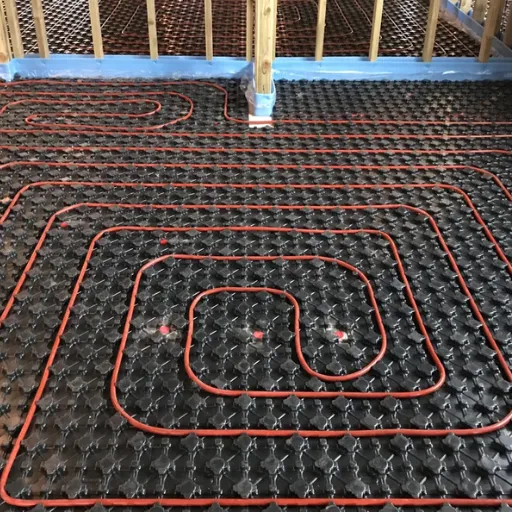

• Install pipework in specified loop patterns: serpentine for large even areas, counter-flow spiral for improved temperature uniformity

• Maintain designed pipe spacing (typically 100–300 mm depending on heat load and floor covering)

• Secure pipes to insulation boards with clip rails or stapling systems

• Ensure minimum bending radii are maintained to avoid kinking

• Conduct pressure test at 6 bar for 24 hours before screed placement

Step 4: Screed and Floor Covering Installation

The screed serves as both the heat distribution layer and the structural base for the floor finish.

Critical considerations:

• Use a screed mix compatible with underfloor heating (typically fiber-reinforced or polymer-modified)

• Ensure the screed fully encapsulates the pipes with minimum 30 mm cover above the top of the pipe

• Install movement joints as specified by the screed manufacturer

• Do not operate the heating system until the screed has cured sufficiently, typically 21 days for standard cement screed

• When first commissioning, increase water temperature gradually (5°C per day) to avoid thermal shock to the screed

Ready to specify insulation for your underfloor heating project? Request a custom quote for XPS and rock wool insulation boards tailored to your floor assembly requirements.

Common Underfloor Heating Installation Mistakes and How to Avoid Them

Even experienced contractors make errors that compromise system performance. Here are the most costly mistakes and how to prevent them.

Mistake 1: Inadequate or Missing Subfloor Insulation

The most common and most expensive error is treating subfloor insulation as optional. Some contractors skip it to save material cost, not realizing that the building owner pays for that decision every heating season for the life of the building.

Prevention: Specify insulation board thickness based on heat loss calculations, not guesswork. For ground floors, never install less than 30 mm XPS; 50–80 mm is standard in cold climates.

Mistake 2: Thermal Bridging at Structural Penetrations

Steel columns, service penetrations, and foundation walls create thermal bridges that bypass the insulation layer. These localized cold spots can cause condensation and mold growth.

Prevention: Cut insulation boards carefully around penetrations and seal gaps with compatible expanding foam. Maintain continuity of the insulation layer wherever structurally possible.

Mistake 3: Incorrect Screed Curing Before Commissioning

Impatience costs money. Operating a underfloor heating system before the screed has cured causes cracking, reduced strength, and potential delamination from the subfloor.

Prevention: Follow screed manufacturer curing guidelines strictly. For cementitious screeds, 21 days is standard. Use temporary heating if the building must be occupied sooner, but keep it separate from the underfloor system.

Mistake 4: Incompatible Floor Coverings

Some floor coverings act as thermal barriers that reduce system efficiency. Thick carpets with underlay can increase the floor's thermal resistance to the point where heat output is insufficient for the space.

Prevention: Verify floor covering thermal resistance (R-value) against system design output. Tile, stone, and engineered wood are typically compatible. If carpet is required, specify low-tog underlay and consult the heating system designer.

Insulation Specifications for Different Underfloor Heating Applications

The optimal insulation specification varies by building type, climate, and floor construction. Use the following guidelines as a starting point, and confirm with local energy code requirements.

Residential Ground Floors

Residential Upper Floors Over Unheated Spaces

Commercial Applications

For mixed-use buildings where fire ratings apply to floor assemblies, our non-combustible rock wool insulation solutions integrate with standard underfloor heating construction while maintaining code-compliant fire performance.

Building Codes and Standards for Underfloor Heating Installation

Underfloor heating installation must comply with multiple overlapping standards: energy efficiency codes, fire safety regulations, and mechanical system standards.

Energy Efficiency Requirements

Most jurisdictions now mandate maximum U-values (thermal transmittance) for ground floors and floors over unheated spaces. The insulation layer in your underfloor heating assembly is what enables compliance with these U-value limits.

For example, under the EU Energy Performance of Buildings Directive, new residential ground floors in many climate zones must achieve U-values of 0.30 W/(m²·K) or lower. Achieving this with a heated screed assembly typically requires 60–100 mm of XPS insulation depending on the full build-up.

Fire Safety and Insulation Materials

When underfloor heating is installed in multi-story buildings, the insulation materials may contribute to the fire resistance rating of the floor assembly. Rock wool insulation contributes non-combustible performance and can form part of a fire-rated floor system when specified correctly.

XPS extruded polystyrene, while excellent thermally, is combustible and must be separated from occupied spaces by appropriate screed or fire barriers according to local code. Always verify fire compartmentation requirements with the project fire engineer.

Commissioning and Long-Term Performance

Proper commissioning ensures the underfloor heating system operates at design efficiency. The insulation layer you installed during construction continues to influence performance for decades.

Commissioning Checklist

• Verify all zones heat evenly with an infrared camera

• Record flow temperatures and pressure drops at the manifold

• Set the heating curve on the mixing valve or heat pump controller

• Program thermostats with appropriate setback temperatures

• Provide the building owner with operating instructions

Insulation Durability Over Time

Quality XPS insulation maintains its thermal performance for the life of the building. Unlike some open-cell materials, XPS does not absorb moisture and does not settle or degrade under normal compressive loads. Our XPS boards are manufactured with a minimum compressive strength of 250 kPa and closed-cell structure that resists long-term moisture exposure.

However, insulation performance depends on correct installation. Boards that were poorly butted during installation, or gaps that were left around penetrations, create permanent thermal bypasses that no amount of commissioning can fix. This is why installation quality matters as much as product specification.

Conclusion

Underfloor heating installation is a system, not a product. The heating element, whether electric cable or water-filled pipe, is only one component. Without proper subfloor insulation, edge insulation, and correct installation sequence, even the most expensive heating system underperforms.

Key takeaways for your next project:

• Never skip subfloor insulation. XPS boards with appropriate compressive strength are the industry standard for a reason, they work.

• Size insulation thickness to local energy code and heat loss calculations, not guesswork.

• Follow screed curing times before commissioning to avoid costly cracks and repairs.

• Verify floor covering compatibility early in the design phase.

• Use non-combustible edge insulation where fire codes require it.

When James Okonkwo's team installed a hydronic underfloor heating system for a hotel project in Lagos, they specified 50 mm XPS insulation beneath the screed and paid careful attention to board joint alignment. The result? The system reached design output at flow temperatures 4°C lower than an identical system installed by another contractor in the same development who had cut insulation costs. Over a 15-year building lifecycle, that difference in operating efficiency pays for the insulation many times over.

If you're planning an underfloor heating installation and need guidance on insulation specification, compressive strength requirements, or fire-rated edge insulation, our technical team provides complimentary consultation for your project. We can review your floor assembly drawings, recommend the optimal XPS board grade, and ensure your insulation specification aligns with local energy codes.
